Submersible Copper Winding Wire (HV4)

HV4

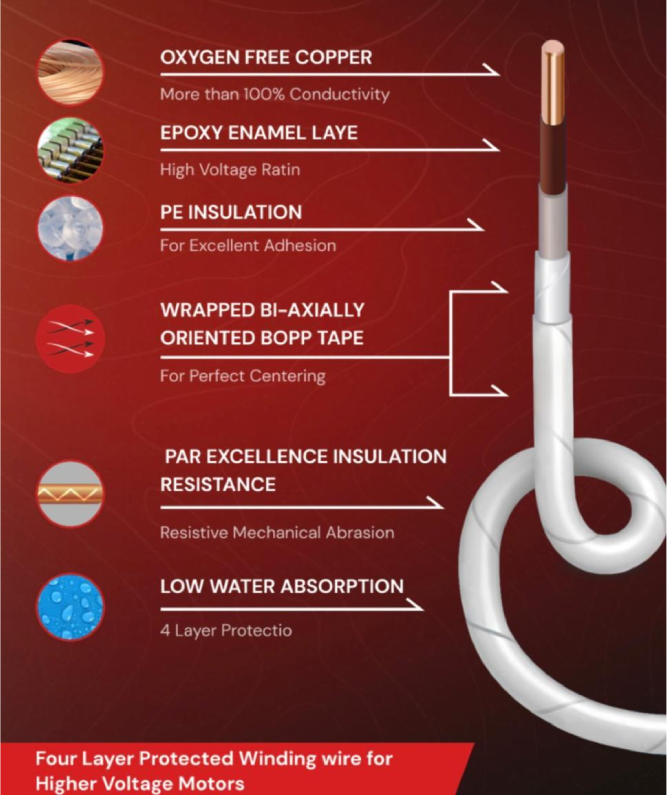

The OceanVolt HV4 is a four-layer protected submersible copper winding wire, specifically engineered for high-voltage motors. Designed for maximum durability and performance, HV4 wires feature an additional epoxy- enamelled coating, enhancing strength and longevity. With thick insulation that provides excellent electrical and mechanical properties, these wires ensure long-lasting reliability even after years of operation. The HV4 wire is built with a robust base and superior resistance to heat and shock, making it an ideal choice for demanding applications.

HV4 Insulation is specially made for submersible motors which operate voltage above 5000V.

Excellent Mechanical Strength and cut through resistance.

Low water/Moisture absorption.

Tear Resistant

Increased motor life due to joint free Bonded Insulation Significant Power Saving (Reduced Leakage Current @90°C and at high centrifugal pressure)

Increased modulus of elasticity making it softer & easy to wind.

Bonded Insulation Reduces water Seepage.

GENERAL DATA FOR HV4 SUBMERSIBLE COPPER WINDING WIRE (5000V & ABOVE)

Conductor Diameter MM	Overall Diameter MM	Conductor Resistance At 20°C (Nominal) Ω/KM.	Elongation (MIN.)%	Approx Weight KG/KM
2.20	6.85	4.498	35	64.591
2.30	6.95	4.116	35	68.414
2.40	7.05	3.780	35	72.378
2.50	7.15	3.483	35	76.480
2.60	7.25	3.221	36	80.723
2.70	7.35	2.986	36	85.105
2.80	7.45	2.777	36	89.628
2.90	7.55	2.589	36	94.289
3.00	7.85	2.419	36	101.358
3.10	7.95	2.265	36	106.329
3.20	8.05	2.126	36	111.439
3.30	8.15	1.999	36	116.689
3.40	8.25	1.883	36	122.078
3.50	8.35	1.777	36	127.607
3.60	8.45	1.680	37	133.276
3.70	8.55	1.590	37	139.085
3.80	8.65	1.507	37	145.033
3.90	8.75	1.431	37	151.121
4.00	9.00	1.360	37	159.308
4.10	9.10	1.295	37	165.697
4.20	9.20	1.234	37	172.226
4.30	9.30	1.177	37	178.895
4.40	9.40	1.124	37	185.703
4.50	9.50	1.075	37	192.651
4.60	9.60	1.029	37	199.739
