Submersible Copper Winding Wire (Poly-Wrap)

POLY-WRAP

OceanVolt Poly-Wrap Winding Wire, manufactured from continuous cast copper rods with bright annealed round solid bare copper conductors, is specifically designed for submersible pump motors. These wires exhibit exceptional electrical, mechanical, thermal, and chemical properties, ensuring superior performance and durability.

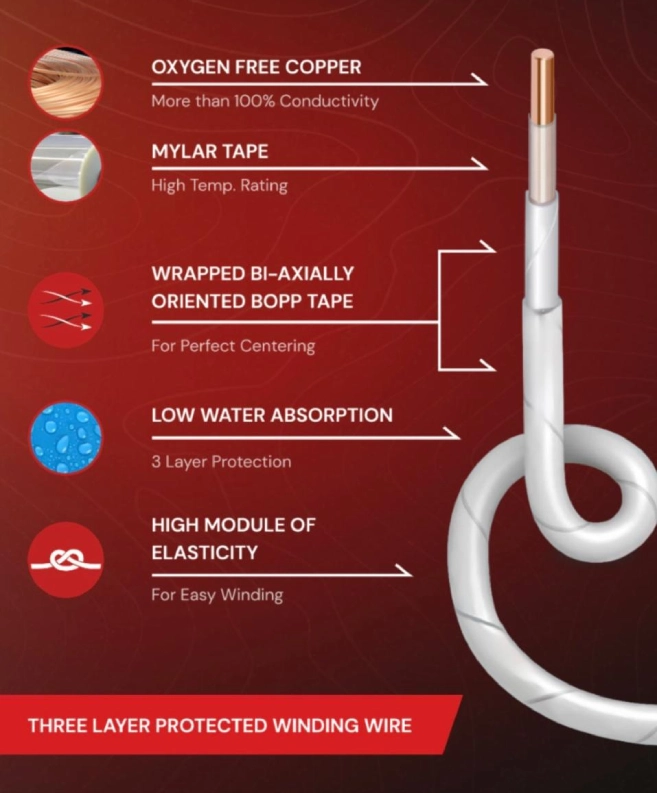

Our wires are insulated using high-quality polyester and bi-axially oriented polypropylene films, which are uniformly applied to the conductors using advanced technology at our state-of-the-art manufacturing facility. The fabrication of these wires follows the guidelines of IS 158783 (Part 4/Section 3), ensuring compliance with industry standards.

Poly-wrap Insulation is suitable for continuous operating voltage upto 1000v.

Withstand 90°C Temperature.

Excellent Mechanical strength and cut thorough resistance.

Poly-wrap wire helps motor manufacturers to reduce their motor cost because of its less insulation thickness.

Low water/ Moisture absorption.

GENERAL DATA FOR POLY-WRAP SUBMERSIBLE COPPER WINDING WIRE

Conductor Diameter MM	Overall Diameter MM	Conductor Resistance At 20°C (Nominal) Ω/KM	Elongation (MIN.)%	Approx Weight KG/KM
0.40	0.90	136.077	27	1.652
0.50	1.00	87.090	28	2.367
0.60	1.10	60.479	29	3.222
0.70	1.20	44.433	30	4.216
0.80	1.30	34.019	30	5.349
0.90	1.40	26.880	31	6.623
1.00	1.50	21.772	32	8.036
1.10	1.60	17.994	32	9.589
1.20	1.70	15.120	33	11.282
1.30	1.80	12.883	33	13.114
1.40	2.00	11.108	33	15.405
1.50	2.10	9.677	33	17.534
1.60	2.20	8.505	33	19.802
1.70	2.30	7.534	34	22.210
1.80	2.40	6.720	34	24.757
1.90	2.50	6.031	34	27.445
2.00	2.60	5.443	34	30.272
2.10	2.70	4.937	35	33.239
2.20	2.80	4.498	35	36.345
2.30	3.10	4.116	35	38.850
2.40	3.20	3.780	35	44.021
2.50	3.30	3.483	35	47.581
2.60	3.40	3.221	36	51.281
2.70	3.50	2.986	36	55.121
2.80	3.60	2.777	36	59.100
2.90	3.70	2.589	36	63.219
3.00	3.80	2.419	36	67.477
3.10	3.90	2.265	36	71.876
3.20	4.00	2.126	36	76.414
3.30	4.10	1.999	36	81.091
3.40	4.20	1.883	36	85.909
3.50	4.30	1.777	36	90.866
